DeckLink Quad 2 擷取器
Eight-channel PCIe capture and playback card

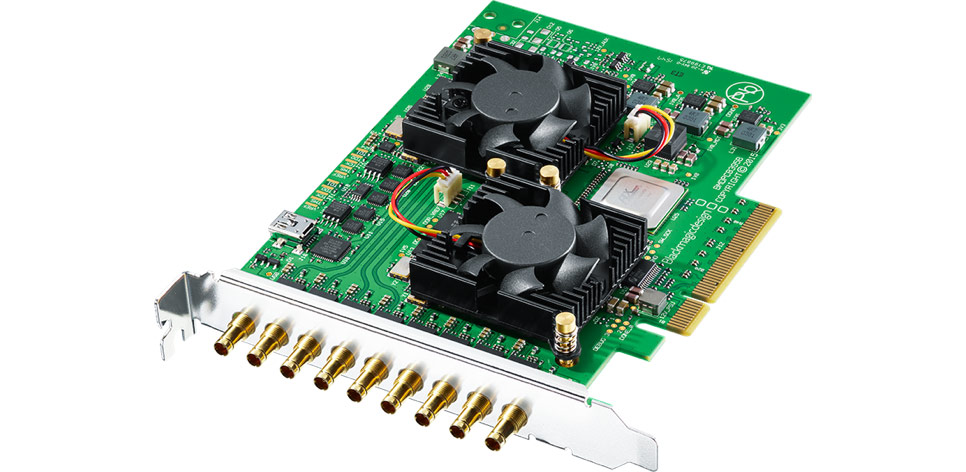

DeckLink Quad 2 provides eight independent 3G‑SDI mini DIN channels on one PCI Express card. Configure each connection for capture or playback in SD and HD workflows up to 1080p60.
DeckLink Quad 2
8 × 3G‑SDIIndependent mini DIN connections
1080p60SD and HD video support
PCIe Gen 2 x8Internal workstation interface
Flexible multi-channel I/O
Each of the eight 3G‑SDI mini DIN connections can switch between input and output. This makes one card suitable for capture, playout, or a mix of both across multiple channels.
Multi-channel capture
Bring several SDI feeds into a single system for recording or live workflows.
Media playout
Configure channels for SDI output in broadcast and playback systems.
Digital signage
Drive multi-screen SDI workflows from one PCIe card.
Key specifications
| Product | Blackmagic Design DeckLink Quad 2 擷取器 |
|---|---|
| Video connections | 8 independent 3G‑SDI mini DIN connections; each configurable for input or output |
| Video formats | SD and HD over SDI, up to 1080p60 |
| SDI audio | 16 channels of embedded audio in SD and HD |
| Reference input | Tri-Sync or Black Burst |
| Computer interface | PCI Express Gen 2 x8; compatible with x8 and x16 slots |
| Software | Media Express, Blackmagic Desktop Video Utility and Blackmagic drivers |
| Operating systems | Mac, Windows and Linux; check current driver and system requirements before installation |
