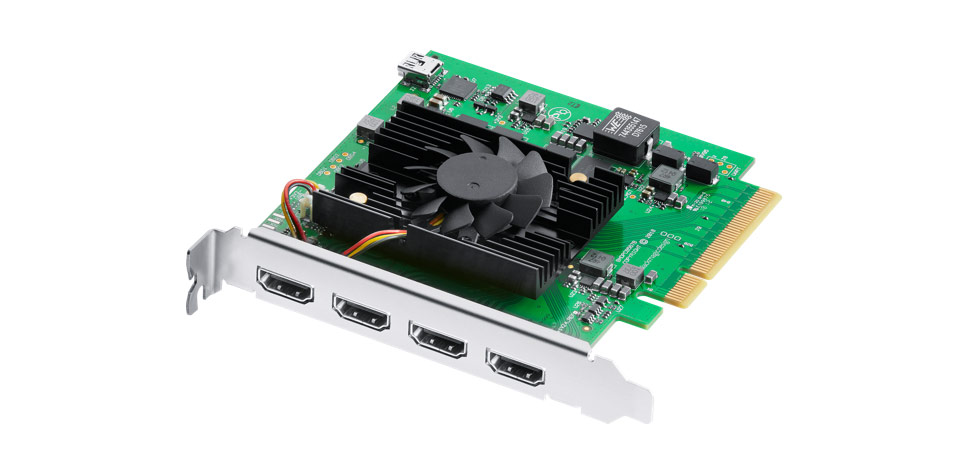

DeckLink Quad HDMI Recorder 擷取器
Four-input PCIe HDMI capture card
Capture four HDMI sources at once with a single PCI Express card. Its four independent HDMI 2.0b inputs can handle different SD, HD, Ultra HD, 4K and computer formats simultaneously.
DeckLink Quad HDMI Recorder
4 × HDMI 2.0bIndependent video inputs
4Kp60Ultra HD and 4K DCI capture
PCIe Gen 3 x8Internal workstation interface
Four sources, one card
Record or process four HDMI sources at the same time. The inputs can use different supported formats, making the card useful for live switching, streaming and multi-source ingest.
Live switching
Bring up to four HDMI feeds into compatible production software.
Streaming
Capture several camera or computer sources for a flexible live workflow.
Multi-source recording
Ingest four independent HDMI signals in a single workstation.
Key specifications
| Product | Blackmagic Design DeckLink Quad HDMI Recorder 擷取器 |
|---|---|
| Video inputs | 4 independent HDMI 2.0b inputs |
| Video formats | SD, HD, Ultra HD, 4K DCI and supported computer formats; up to 4Kp60 |
| HDMI audio | 8 channels of embedded audio in SD, HD, Ultra HD and 4K |
| Computer interface | PCI Express Gen 3 x8; compatible with x8 and x16 slots |
| Software | Media Express, Blackmagic Desktop Video Utility and Blackmagic drivers |
| Operating systems | Mac, Windows and Linux; check current driver and system requirements before installation |
| Copy protection | Cannot capture copy-protected HDMI sources |
