DeckLink IP Series
DeckLink IP 100G 擷取器
Multi-channel Ultra HD over 100G IP
Capture and play back up to eight Ultra HD channels simultaneously on Windows or Linux, or up to four on Mac. Dual 100Gb/s QSFP28 optical connections provide redundant SMPTE 2110 IP paths.

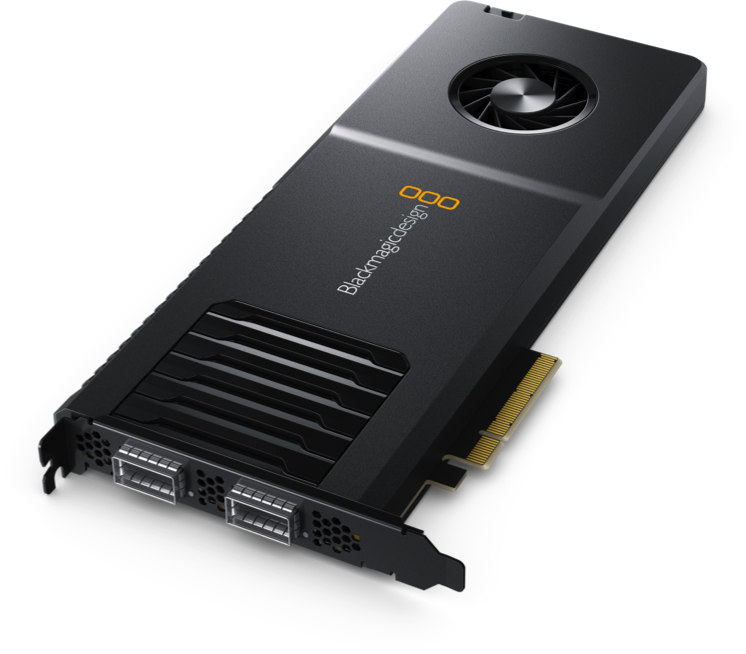

DeckLink IP 100G
Up to 8 channelsUltra HD capture and playback on Windows/Linux
Dual 100GQSFP28 optical connections for redundancy
2160p60Maximum Ultra HD video standard
High-capacity 2110 IP video
Built for multi-channel broadcast capture and playback with redundant optical network paths. The PCI Express Gen 4 x8 card supports SD, HD, 2K, Ultra HD and 4K DCI standards, plus PTP timing and NMOS control.
More live channels
Up to eight Ultra HD 2160p60 capture and playback channels on Windows and Linux; up to four on Mac.
Redundant networking
Two 100Gb/s QSFP28 connections support SMPTE 2022-7 redundant streams.
Professional workflows
Works with popular formats including ProRes, DNxHD and 10-bit uncompressed video.
Key specifications
| Product | Blackmagic Design DeckLink IP 100G 擷取器 |
|---|---|
| IP connections | 2 × 100Gb/s QSFP28 optical fiber Ethernet ports |
| Channels | Up to 8 Ultra HD 2160p60 capture and playback channels on Windows/Linux; up to 4 on Mac |
| Computer interface | PCI Express Gen 4 x8; compatible with x8 and x16 slots |
| Power | 50 W; 6-pin (2×3) auxiliary power connection required |
