Blackmagic Design
Digital + analog capture and playback
DeckLink Series
DeckLink Studio 4K 擷取器
One card for modern and legacy video
Capture and play back through 6G-SDI, HDMI 1.4b and analog connections. Work across SD, HD, 2K and Ultra HD formats with professional audio, reference sync and RS-422 deck control.

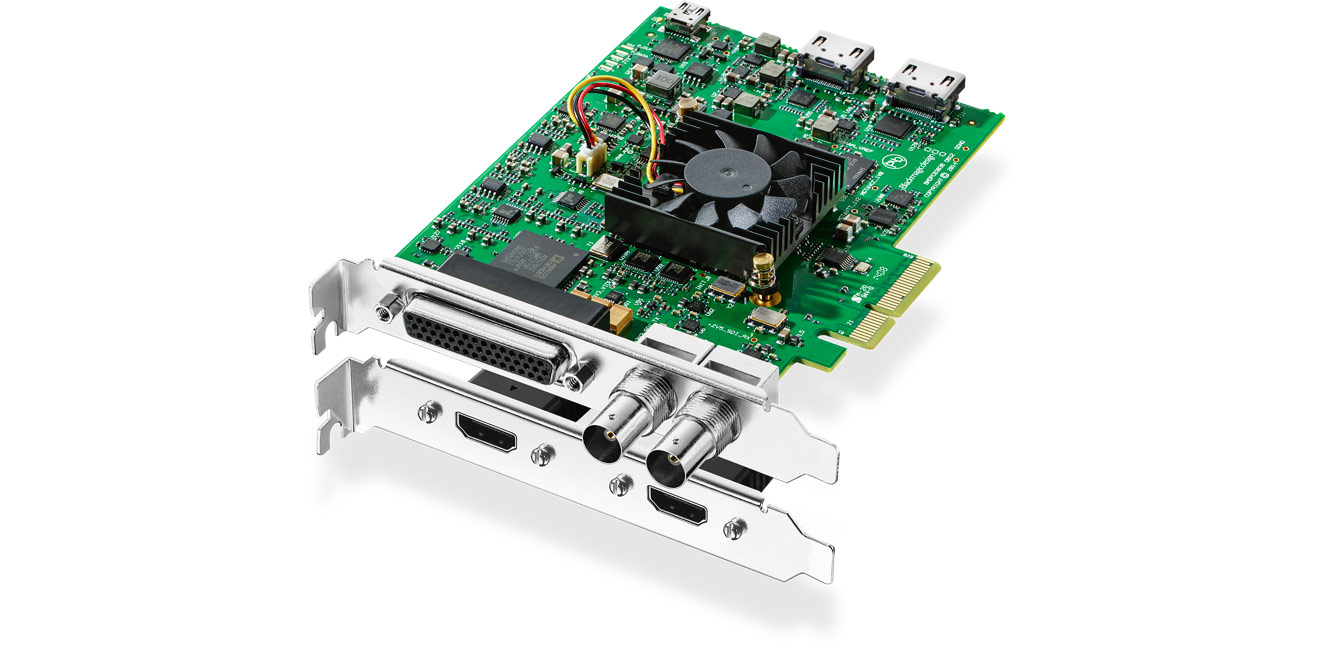

DeckLink Studio 4K
6G-SDISD to Ultra HD video I/O
HDMI 1.4bVideo input and output
Analog I/OComponent, composite and S-Video
Flexible capture and playback
Connect digital and analog equipment in one PCIe workstation. Balanced analog audio, AES/EBU, reference input and RS-422 control make DeckLink Studio 4K a practical bridge between older decks and current production systems.
Digital video
Capture and output through 6G-SDI or HDMI, with Ultra HD formats up to 2160p30.
Analog equipment
Use component, composite and S-Video connections for compatible sources.
Production control
Tri-Sync / Black Burst reference and RS-422 deck control support studio workflows.
Key specifications
| Product | Blackmagic Design DeckLink Studio 4K 擷取器 |
|---|---|
| Digital video | 1 × 6G-SDI input and output; 1 × HDMI 1.4b input and output |
| Analog video | Component YUV, composite and S-Video input and output |
| Maximum Ultra HD | 2160p30; DCI 4K up to 25p via SDI only |
| Computer interface | PCI Express Gen 2 x4; x4/x8/x16 slots |
| Power consumption | 22 W |
